Product overview
Product description
siliXcon brushless motor controllers are a key component of a system that effectively controls three-phase motors. They are intended to operate with low-voltage DC power sources and are available in various voltage options, providing versatility and flexibility. Due to these features, siliXcon motor controllers are primarily used in battery-powered vehicles that require compact dimensions. Key features of siliXcon motor controllers include:
- High power density: Advanced technology and an emphasis on efficient heat dissipation from the most stressed areas allow us to maintain the control unit's dimensions as small as possible.
- Modularity: Individual blocks of the control unit are designed as modules that are shared among various controller models and variants. This provides users with a high degree of flexibility, and transitions between models do not pose complications.
- High dynamics: An extremely fast control loop for phase currents ensures precise current control and very rapid response to changes in control signals.
- Advanced protective features: Thanks to precise control of phase current and temperature control at critical points, the controller is robustly protected against overcurrent and overheating.
- VCU (Vehicle Control Unit): Integration of a high-performance microprocessor allows the implementation of vehicle control functions directly into the controller, thus saving installation space and end-application costs.
The controller is primarily designed to drive an electric motor with permanent magnets. Two standard FW applications LYNX and OPHION can be loaded into the controller.
SL controller

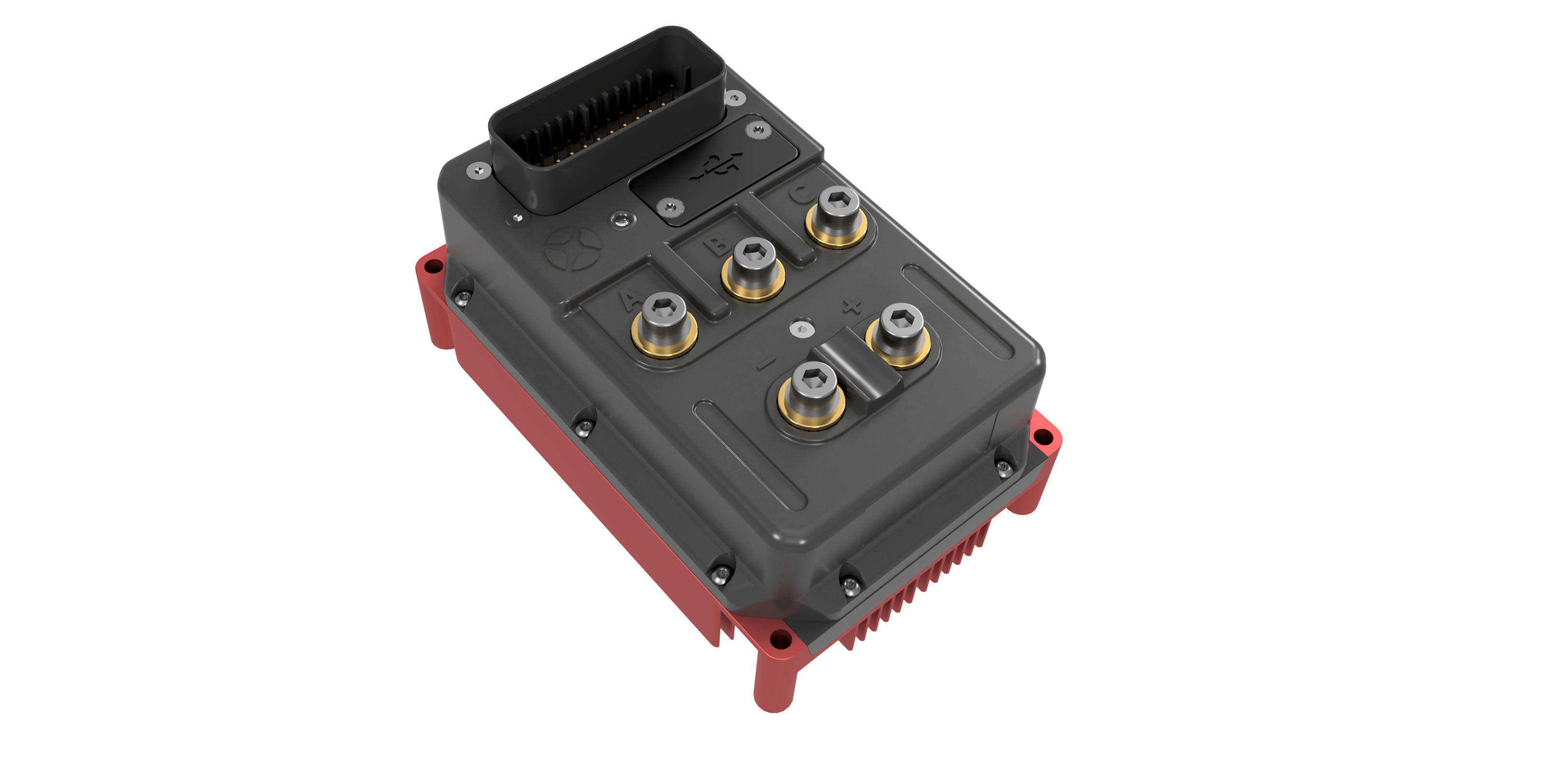

23.7kW brushless motor controller is a compact and robust motor controller featuring a single signal connector (Ampseal) and M6 power terminals for battery and motor power cables. Its innovative thermal management allows it to minimise dimensions and weight while maintaining its maximal power output. Midsize e-motorbikes or small e-cars are the target applications for this controller.

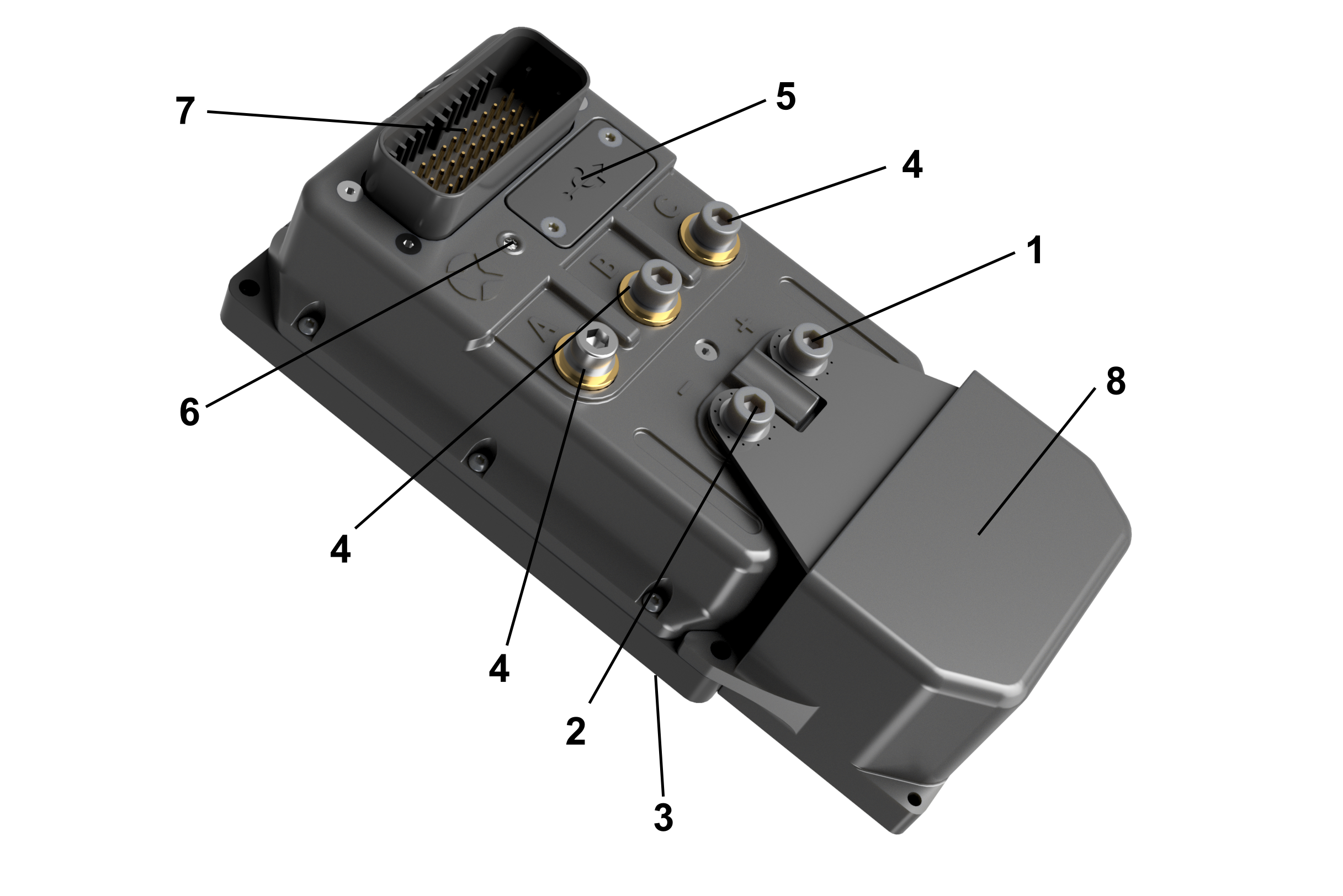

| Position | Name |
|---|---|
| 1 | Battery + terminal |
| 2 | Battery - terminal |
| 3 | Mounting sourface |
| 4 | Motor phase terminal |
| 5 | USB cover / Vent plug |
| 6 | Status LED |
| 7 | Signal connector - Ampseal |
Signal part is connected via the signal connector - 7. Battery is connected to M6 terminals - 1, 2, as well as motor phases - 4. The controller should be installed by placing the mounting sourface - 3 on a flat metal sourface and securing it by four screws. Status LED - 6 indicates error states. USB-B programming connector is under the cover - 5.
Selectable jumpers
SL controller can be equipped with two versions of the jumper board. Unfortunately, the board version is not reflected in the controller's MPN and it is necessary to identify them by physical appearance.
Both versions' selectable low profile jumpers are located under the USB cover.
- New version
- Old version
There are two jumpers with 4 pins in total. The jumpers' localisation and function are depicted in the picture below.
There are two jumpers with 6 pins in total. The jumpers' localisation and function are depicted in the picture below.
Product identification label
Each product is equipped with an identification label containing pertinent information.
| Position | Name |
|---|---|
| 1 | Maximum operating voltage |
| 2 | Country of manufacture |
| 3 | SN QR code |
| 4 | Serial number |
| 5 | Product Name |
| 6 | Order code |
Product variants
The Manufacturer Part Number (MPN) completely specifies the product type and version. When combined with the Firmware Identifier (Basename), it can serve as the ordering code. The MPN is made up of different sections, which are explained in the table below. Typically, only the standard variant is in stock.
MPN of the standard variant: SL_48exa1060-400_AFFFG-600BB
- Main PCB assembly variant
- Finish
- Power Stage
- Power Features
- Connectivity
- Motor sensors
- Voltage
- Current
- HW configuration
Usually defines a variant of the power stage, occasionally can indicate a special version of the product's PCB.
The particular controller's voltage variant usually uses different MOSFETs based on the given voltage range.
Available versions are:
- 48: Standard version of the controller. Indicates 48 MOSFETs in the power stage.
Defines variant of the powering interface
Available versions are:
-
e: Special version of the controller, equipped with the capacitors precharge circuit.
Precharge
This feature enables automated capacitor precharging via an internal power source with limited current, effectively eliminating excessive inrush current when connecting the battery.
This feature requires the usage of a battery contactor controlled by the motor controller. The battery's positive terminal is connected to the controller's logic (controller turned ON), and the internal power source charges the capacitors with the defined current. Once the capacitors reach the required voltage level, the main battery contactor closes, connecting the battery's positive terminal directly to the controller.
The required precharge voltage level and contactor coil operating voltage can be set by SW parameters according to the particular use case and used components.
Defines variant of the communication interface
Available versions are:
Defines supported motor position sensors. More infornation about the particular motor postion sensor interface can be found in this section.
Available versions are:
-
a: Standard version of the controller. Supports 3 Hall and Sin/Cos motor position sesnors.
-
r: Special version of the controller. Supports resolver motor postion sensor.
Defines voltage operation range of the controller. Detailed technical specifications can be found in this section.
The higher the limit voltage range, the better the protection against overvoltage. However, as the voltage range increases, the MOSFETs' Rdson also increases.
Available versions are:
- 10: Standard version of the controller. The absolute voltage limit is 100 V.
Defines current measurement range of controller.
The higher the current measurement range, the better the protection against overcurrent. However, as the current measurement range increases, the resolution of the current measurement decreases.
Available versions are:
-
60: Standard version of the controller. The measuring range is 600 A.
-
80: Special version of the controller. The measuring range is 800 A.
Internal HW configuration describes selectable modifications in hardware. Each item can be present (marked with 1) or absent (marked with 0). A 12-bit binary number is used for this description and is visualized in hexadecimal form. Not all the options are used, these items are marked as "Reserved".
Powering on method
The device offers several powering methods, defined by the combination of these items:
- Internal Fuse
- Flip-Flop
- Key resistor
A detailed powering scheme together with the available powering options can be found in the powering circuit's detailed specification.
- Signals
- Power terminals
- Housing
Defines signal connector options.
Available versions are:
- AFFFG: Standard variant. Ampseal 35 connector is used, IOGND and Power GND are isolated
Defines used power Terminals.
Available versions are:
- 6: Standard variant. Power terminals with M6 threads for cable lugs.
Defines housing option.
Available versions are:
- BB: Standard variant. Sealed black elox heatsink, black plastic moulded cover.

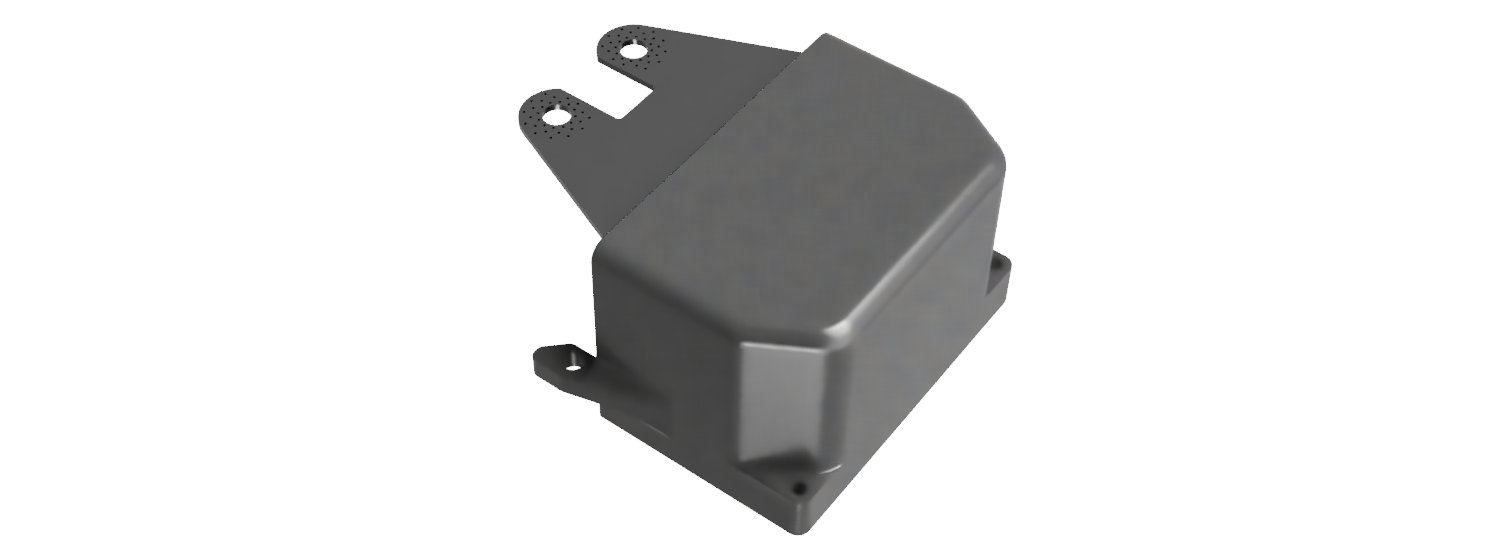

Accesories
Signal connector
- mating connector: AMPSEAL 35pos, Black, 16-20 AWG 776164-1
- mating connector: AMPSEAL 35pos, Black, 20-24 AWG 2371885-1
- backshell: 2389807-1
- connector position assurance: 2373965-1
- sealing plug 16-20 AWG: 770678-1
- sealing plug 20-24 AWG: 776364-1
- crimp terminals 16-20 AWG, Pre-tin plated: 770520-1
- crimp terminals 20-22 AWG, Pre-tin plated: 770520-5
- crimp terminals 22-24 AWG, Pre-tin plated: 770520-6
- crimp tool 16-20 AWG: 2217748-1
- crimp tool 20-22 AWG: 2396182-1
- crimp tool 22-24 AWG: 2396101-1
Power connectors
- mating connector: M6 cable lug
