Product specification

Standard edition

Physical characteristics

• width: 96 mm
• height: 147.7 mm
• thickness: 63.9 mm
• weight: 1200 g

Drawings and 3D models

• 3D model
• Drawing

Middle Voltage edition

Physical characteristics

• width: 96 mm
• height: 200.6 mm
• thickness: 63.9 mm
• weight: 1500 g

Drawings and 3D models

• 3D model
• Drawing

Raptor Fan edition

Physical characteristics

• width: 96 mm
• height: 147.7 mm
• thickness: 81.55 mm
• weight: TBD

Drawings and 3D models

• 3D model
• Drawing

General specification

Parameter	value
Switching frequency	20 kHz
Maximum motor magnetic field speed	2 kHz
Minimum motor phase inductance	2.5 μH

note

Minimum motor inductance is inductance of one winding (half of inductance between motor terminals). Motor inductance usually drops with increasing current due to saturation of motor magnetic circuit. This effect must be also considered when evaluating motor minimum inductance.

warning

If motor inductance is lower than specified, controller lifetime could be significantly reduced (even orders of magnitude). Low inductance increases electrolytic capacitors ripple current thus their temperature and lifetime.

Electrical specification

Input voltage rating

Maximum input voltage

Voltage variant	Transistors	Maximum working voltage	Full limitation voltage	Critical error voltage (max)	Li-ion battery nominal voltage	Li-ion series cells count
10	100 V	84 V	92 V	100 V	72 V	20S
15	150 V	118 V	135 V	145 V	100.8 V	28S

Minimum input (supply) voltage

Voltage variant	Transistors	Minimum working voltage	Threshold voltage	Critical error voltage (min)
10	100 V	18 V	16 V	12 V
15	150 V	18 V	16 V	12 V

Terms explanation:

• The controller delivers maximal current without limitation if the battery voltage is below the Maximum working voltage and above the Minimum working voltage.
• The output current is proportionally limited if the battery voltage is above the Maximum working voltage and below the Full limitation voltage. This is indicated by the "Overvoltage" status.
• The output current is fully limited if the battery voltage is above the Full limitation voltage and below the Critical error voltage (max). This state is indicated by the "Overvoltage" status. The controller automatically recovers if the voltage falls below the Full limitation voltage.
• The controller falls into critical error if the battery voltage exceeds the Critical error voltage (max). The controller can be permanently damaged in this region and does not recover automatically, it needs to be turned OFF and ON again.
• The output current is proportionally limited if the battery voltage is below the Minimum working voltage and above the Threshold voltage. This is indicated by the "Undervoltage" status.
• The output current is fully limited if the battery voltage is below the Threshold voltage and above the Critical error voltage (min). This state is indicated by the "Undervoltage" status. The controller automatically recovers if the voltage rises above the Threshold voltage.
• The controller falls into critical error if the battery voltage falls below the Critical error voltage (min). The controller does not recover automatically, it needs to be turned OFF and ON again.

DC bus capacitance

Voltage variant	Capacitance [uF]
10	2360
15	924 (4444*)

Note *: 924 uF is capacity of the SL controller without SL capacitor bank. However, the additional capacity is required for ProdTSpecIntro controller operation, thus SL capacitor bank must be always connected. Total capacity with the bank connected is 4444 uF.

Output current and power rating

VECTOR driver

Nominal (continuous) performance *	48xxx1060 (Standard)	48xxx1080 (Standard)	48xxx1580 (Standard)	49xxx1080 (Raptor Fan)
Maximum power dissipation (60°C heatsink)	310 W	310 W	420 W	300 W
Nominal power (for maximum input voltage)	26.2 kW @ 84 V	26.2 kW @ 84 V	35.8 kW @ 118 V	25 kW @ 84 V
Nominal phase current	360 A (255 Arms)	360 A (255 Arms)	350 A (248 Arms)	360 A (255 Arms)
Battery current	315 A	315 A	306 A	300 A

* For FAN edition: assuming fan installed, air path not obscured, air temperature 20°C. For others: placing the controller on infinite heatsink with 60°C temperature. Under these conditions the controller will deliver nominal (continuous) performance.

Peak performance *	48xxx1060 (Standard)	48xxx1080 (Standard)	48xxx1580 (Standard)	49xxx1080 (Raptor Fan)
Peak power (10 sec)	36 kW @ 84 V	36 kW @ 84 V	48 kW @ 118 V	42 kW @ 84 V
Peak phase current (10 sec)	500 A (354 Arms)	500 A (354 Arms)	470 A (332 Arms)	550 A (389 Arms)

* Starting at 35°C, the controller will deliver peak performance for 10 seconds. Then, derating will progress until thermal equilibrium is found.

BLDC driver

Nominal (continuous) performance *	48xxx1060 (Standard)	48xxx1080 (Standard)	48xxx1580 (Standard)	49xxx1080 (Raptor Fan)
Maximum power dissipation (60°C heatsink)	310 W	310 W	420 W	300 W
Nominal power (for maximum input voltage)	30.2 kW @ 84 V	30.2 kW @ 84 V	43.7 kW @ 118 V	28 kW @ 84 V
Nominal phase current	360 A	360 A	370 A	360 A (255 Arms)
Battery current	363 A	363 A	373 A	360 A

* For FAN edition: assuming fan installed, air path not obscured, air temperature 20°C. For others: placing the controller on infinite heatsink with 60°C temperature. Under these conditions the controller will deliver nominal (continuous) performance.

Peak performance *	48xxx1060 (Standard)	48xxx1080 (Standard)	48xxx1580 (Standard)	49xxx1080 (Raptor Fan)
Peak power (10 sec)	42 kW @ 84 V	42 kW @ 84 V	57.8 kW @ 118 V	48 kW @ 84 V
Peak phase current (10 sec)	500 A	500 A	490 A	600 A

* Starting at 35°C, the controller will deliver peak performance for 10 seconds. Then, derating will progress until thermal equilibrium is found.

Fixed phase current limits	48xxx1060	48xxx1080	48xxx1580	49xxx1080
RMS current limit 1/	500 Arms	580 Arms	580 Arms	580 Arms
Burst current limit 2/	600 A	800 A	800 A	800 A

1/ Irrespective of the actual temperature conditions, the immediate output current will be clamped to these values by the I2R limiter in the order of seconds. When motor is rotating, power losses are divided between all three phases and the controller is able to supply higher per-phase current amplitude. When the device is super-cooled from outside, this is the maximum theoretical continuous RMS current.

2/ This current can be delivered in short bursts and reflects the current measurement range of every variant. The sufficient margin for current ripple of the switching waveform must be accomodated within the range. Any higher current triggers DTC / active short circuit protection.

Measurement accuracy

Measurement	Accuracy
Phase current	±5 %
DC current	±5 %
Input DC voltage	±5 %
GPIO input voltage	±2 %

Thermal specification

Maximum power losses

Controller maximum temperature is internally limited to approximately 100°C. The maximum output current (or maximum power losses) for this limiting temperature is given by the temperature of the heatsink. Dependencies are given in the following graphs.

info

All the data in the graphs below are valid for VECTOR control algorithm.

Standard / Middle Voltage edition

Example on how to get heatsink thermal resistance

This example with AX controller shows on how to get required heatsink thermal resistance based on the required phase current amplitude and surrounding temperature.

1. Define the required phase current ($I_{phase} = 50$ A for the example)

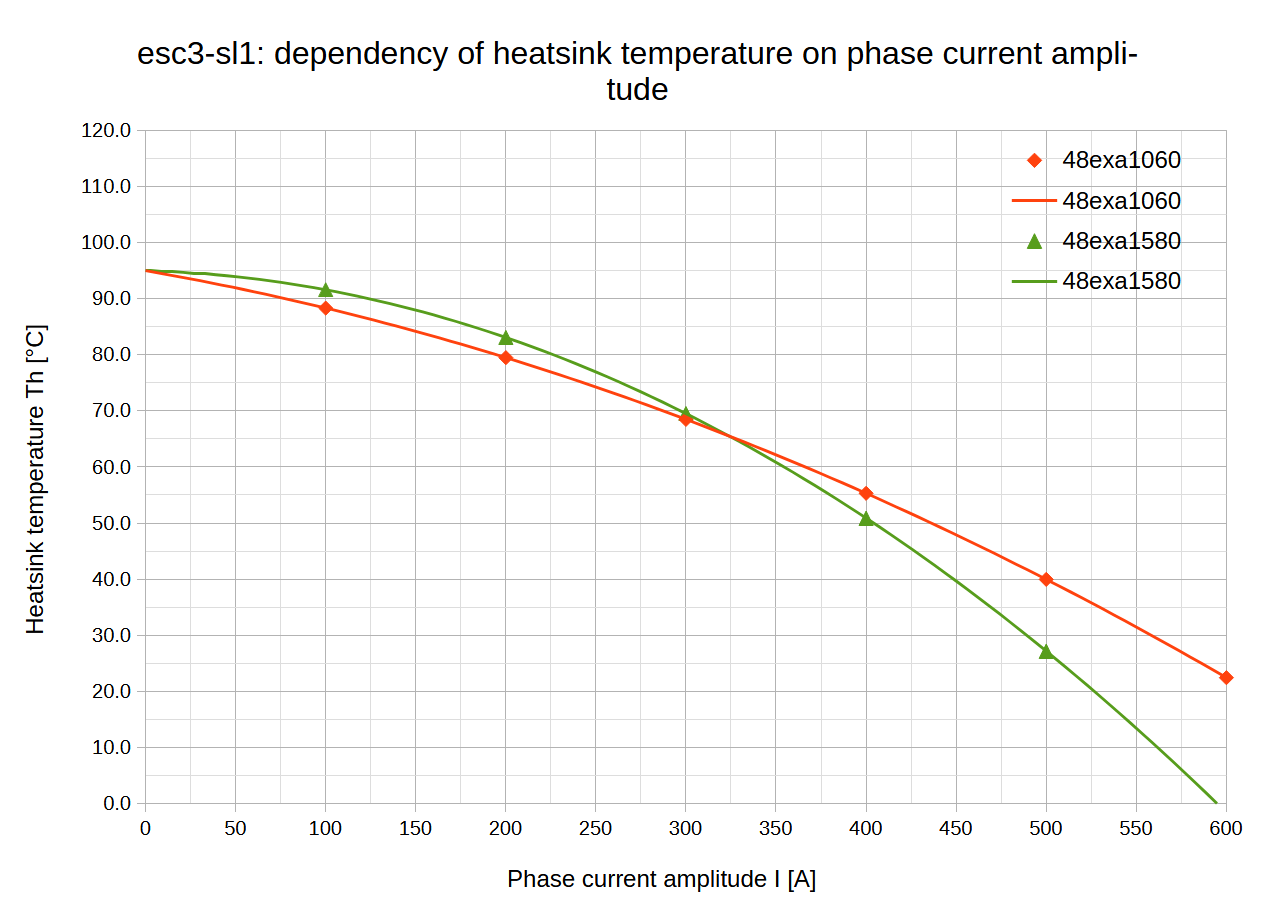

2. Get maximum permissible heatsink temperature from the graph "Dependency of heatsink temperature on phase current amplitude" ($T_{hs} = 57°C$ from the example)

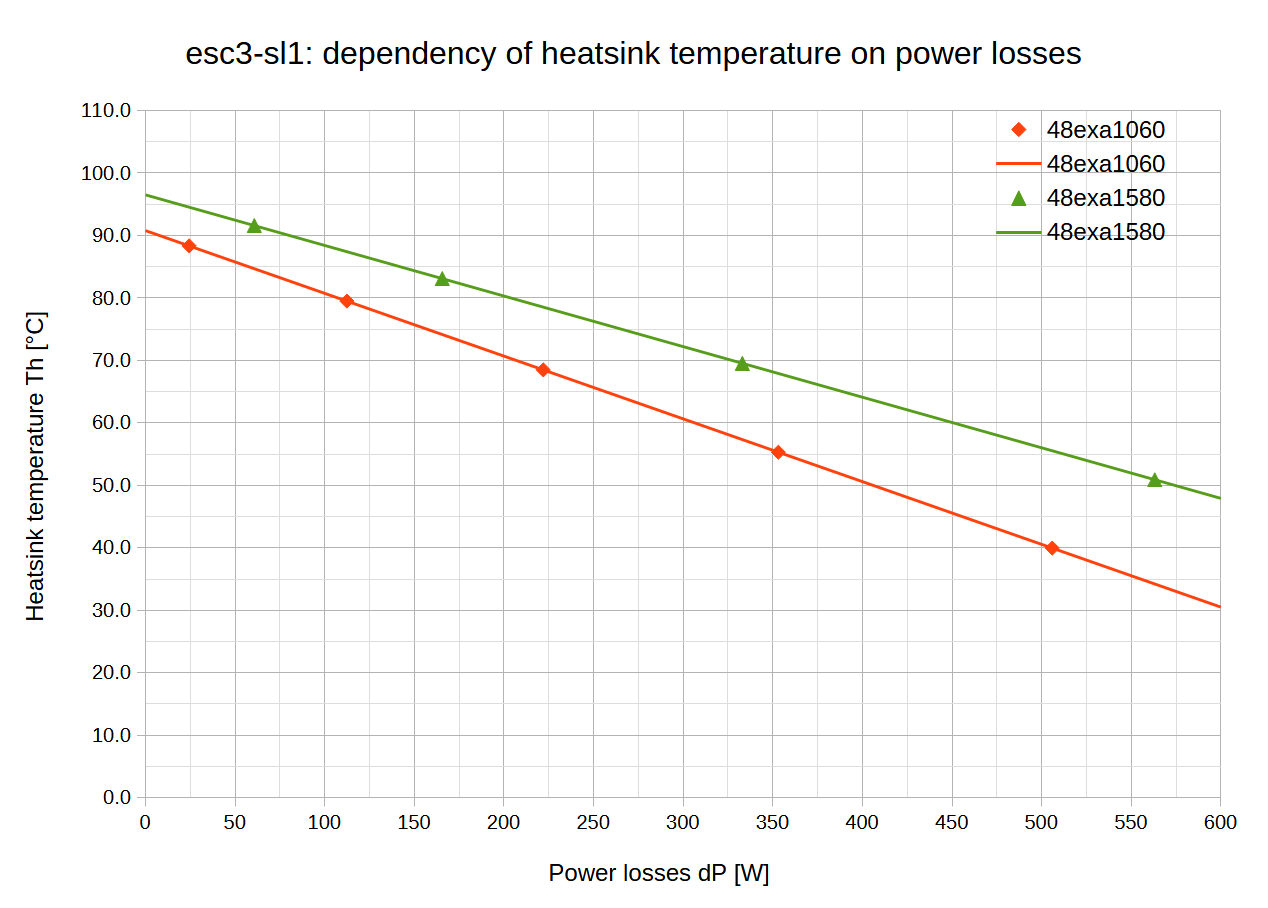

3. Put the temperature value to the graph "Dependency of heatsink temperature on power losses"
4. Get required power that needs to be dissipated by the heatsink ($P = 33$ W from the example)

5. Define the ambient operating temperature ($T_{amb} = 25$ °C for the example)
6. Calculate required thermal resistance of the heatsink by using this equation $R_{hs}=\dfrac{T_{hs} - T_{amb}}{P} =\dfrac{57 - 25}{33} \approx 0.97$ °C/W
7. You can design your heatsink now!

Raptor Fan edition

Parameter	Value	Conditions
Maximum continuous power dissipation	TBD	Fan installed, air path not obscured, air temperature 20 °C

info

Thermal dependency data is not yet available for Raptor editions. Please refer to the power dissipation calculator below.

Power losses calculator

Controller power losses are affected by the two main factors: motor phase current and DC link voltage. The following calculator can be used for rough estimate (~10% accuracy) of power losses in the controller. Calculation is valid for VECTOR driver.

Controller variant:48???106048???1580DC link voltage (V):Phase current amplitude - Iref (A):

Power losses:

Environmental specification

Standard / Middle Voltage edition

Parameter	Value
Operation temperature (no limitation*)	-20°C .. 60°C
Operation temperature (with power limitation*)	-20°C .. 85°C
Humidity	5 % .. 85 % (not tested)
Ingress of water (Ampseal connector unmated)	IPX0
Ingress of water (Ampseal connector mated)	IPX5

*power output limitation depends on cooling, not only on ambient temperature

Raptor Fan edition

Parameter	Value
Operation temperature (no limitation*)	-20°C .. 60°C
Operation temperature (with power limitation*)	-20°C .. 85°C
Humidity	5 % .. 85 % (not tested)
Ingress protection	IP40

*power output limitation depends on cooling, not only on ambient temperature

info

Higher ingress protection rating possible on demand.

Standards compliance

EMC

Subject	Standard
Bulk Current Injection	ISO 11452-4: 2020
Radiated Immunity	ISO 11452-2: 2019
Radiated Emissions	ČSN EN 55025, ed. 3, art. 6.5
